What is a 12V 50Ah lifepo4 lithium battery? 12V 50Ah lithium battery is also named 12V 50Ah lifepo4 battery with four 3.2V 50Ah prismatic lifepo4 cells connected in series. 12V 50Ah LiFePO4 battery provides 600Wh usable energy, supports 1C fast charging, and lasts 5–10 years with 3,000–8,000 cycles. 12V 50Ah lifepo4 battery has 12.8V nominated voltage,14.6V maximum charge voltage, and 9V cut-off voltage.Besides inherently safe raw materials in thermal runaway, the 12V 50Ah LiFePO4 battery is built in a smart BMS with protections against overcharge,overdischarge, overcurrent, overtemperature, and short circuit. 12V 50Ah lithium battery is lightweight, compact, and ultra-long cycle
What is a 12V 50Ah lifepo4 lithium battery?
12V 50Ah lithium battery is also named 12V 50Ah lifepo4 battery with four 3.2V 50Ah prismatic lifepo4 cells connected in series. 12V 50Ah LiFePO4 battery provides 600Wh usable energy, supports 1C fast charging, and lasts 5–10 years with 3,000–8,000 cycles.
12V 50Ah lifepo4 battery has 12.8V nominated voltage,14.6V maximum charge voltage, and 9V cut-off voltage.Besides inherently safe raw materials in thermal runaway, the 12V 50Ah LiFePO4 battery is built in a smart BMS with protections against overcharge,overdischarge, overcurrent, overtemperature, and short circuit. 12V 50Ah lithium battery is lightweight, compact, and ultra-long cycle life, which is the ideal power source for RV, Solar System, Trolling motor, fish finder ,Emergency backup and UPS,ect.
12v 50ah Battery Price Comparison（2025 Data)
The comparison table below is based on the publicly available pricing from online retailers such as Amazon, Walmart, and Home Depot.
| Category | Market Price Range | Brand | Typical Features | Comparison | Typical Application |
| Budget LiFePO₄ | $85 – $110 | Power Queen, Kunlun, Moseworth | Basic BMS function, low to mid-cycle life (2000+), standard ABS casing | Affordable lithium option:
Best for entry-level setups. |
Backup power, lighting, camping, hobbyist electronics. |
| Mid-Range LiFePO₄ | $120 – $160 | LiTime, Eco-Worthy, Renogy | Standard BMS, 4000+ cycles, 5-year warranty, reliable support | High-Performance option: Balanced cost and reliability. | RV, solar storage, trolling motors. |
| Premium LiFePO₄ | $170 – $190+ | Victron, Redodo, ExpertPower | Advanced Smart BMS (Bluetooth), low-temp cutoff, Grade A+ cells | Well-known Brand Option: Highest safety and tech. | Critical medical backup, off-grid living, high-end marine. |
| VTCBATT (12V 50Ah) | $90 – $110 | VTCBATT | Grade A cells, Smart BMS (often w/ Bluetooth), 4,000–6,000+ cycles | Factory Direct Price: Premium specs at a budget cost. | RV, Solar, portable power stations, trolling motors,fish finders,scooters . |
| Lead Acid (SLA/AGM) | $65 – $95 | Mighty, Powersonic, Chrome | No BMS, heavy weight, 300–500 cycles (at 50% discharge) | Legacy Tech: Heavy, short life, but lowest entry cost. | UPS backups, gate openers, vehicle starting, alarm systems. |
Delivery&Package
To ensure safe transportation, VTCBATT 12V 50Ah LiFePO4 batteries are carefully packaged in a UN3480 carton with individual inner boxes and EPE foam against shock. Bulk orders are loaded in solid pallets to ensure easy transportation by truck. You don’t need to worry about the damage. VTCBATT 12V 50Ah battery can always arrive safely in a good package.
STATE OF CHARGE (SOC)
The 12V 50Ah lithium battery capacity could be roughly estimated by its rest voltage (not charging/discharging voltage). As there are subtle differences in the voltage of each battery, the parameters below are for reference only.
Rest Voltage: The voltage needs to be tested at rest (with zero current) after 30 minutes of disconnecting from the charger & loads.
Series/Parallel Connection
The premise of connection
To maintain performance and extend the life cycle of batteries, follow these instructions:
- To connect in series or parallel, all batteries should be fully charged.
- Batteries that are parallel connected shall be of the same order.
- Never connect batteries of different models, charge levels, and/or age status, no matter if they are in series or parallel.

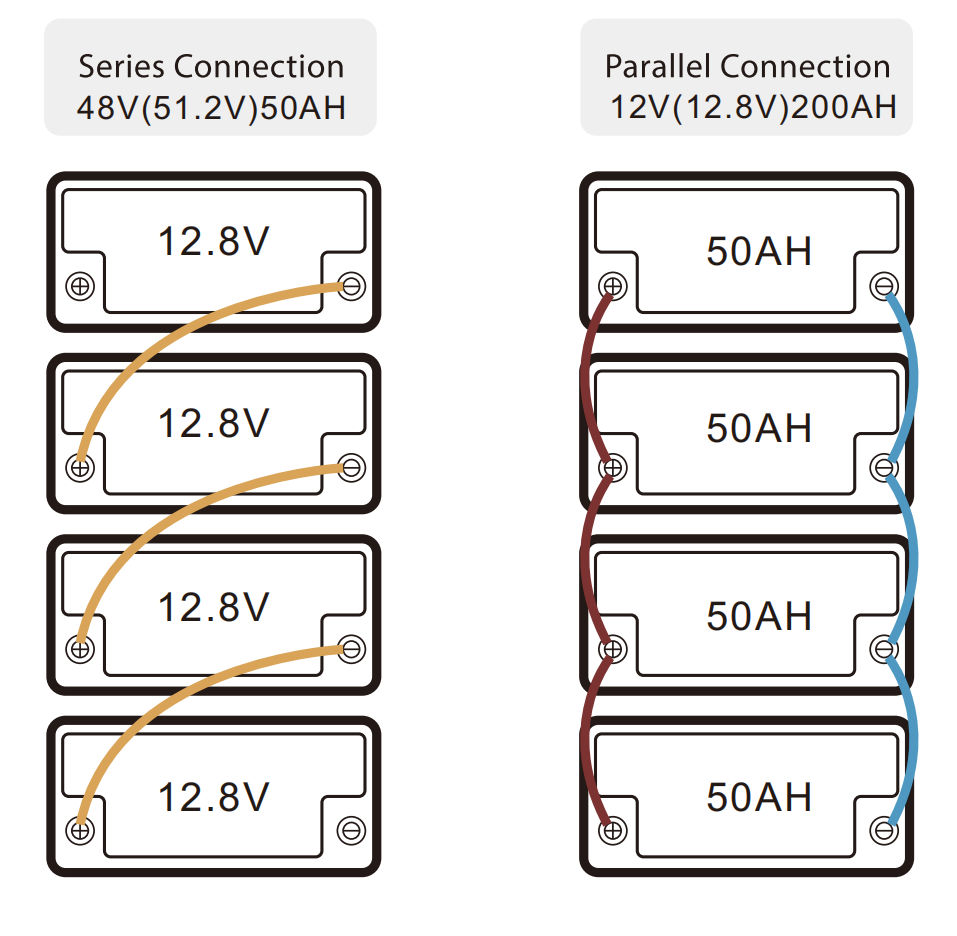

Limits of Series or Parallel Connection
The system supports connecting up to 4 identical batteries for up to:
-4 in series as a 48V (51.2V) battery system.
-4 in parallel as a 200Ah battery system.
Warning:
BATTERY DISPOSAL
Wrap electrodes with insulating paper.
Prevent fire and explosion.
PROHIBITION OF DISASSEMBLY (Repeated)
Never disassemble the battery.
Risk: Internal short circuit → Gassing, Firing, Explosion.
Electrolytes are harmful.
First Aid: If electrolytes contact skin or eyes, flush immediately with fresh water and seek medical advice.
PROHIBITION OF DUMPING INTO WATER
Do not soak in liquids:
Water, Seawater
Drinks: non-alcoholic drinks, fruit juice, coffee, etc.
PROHIBITION OF USING DAMAGED BATTERIES
Stop use if any abnormality:
Damaged plastic envelope.
Deformation of the package.
Smell of electrolyte.
Electrolyte leakage.
PROHIBITION OF USING IN PLACES BELOW
Do not use in places with
Strong static electricity
Strong magnetic field
ATTENTION:
1.DO NOT approach to fire or sun exposure.
2.DO NOT Throw into fire or incinerate.
3.DO NOT put into water and acidity liquids, or allow it to get wet.
4.DO NOT Heat above 70°C / 158°F.
5.DO NOT Short circuit.
6.DO NOT Reverse connections from the charger to the battery.
7.DO NOT Disassemble.
A: The operation runtime depends on the power consumption of different devices.Normally the 12V 50Ah battery has 6000+ cycle life and can be used for 10 years to power the electric appliances.
| Appliances | Power | Runtime |
| 12V Refrigerator | 50W | 12.8 hours |
| LED Lighting | 12W | 53.3 hours |
| Ceiling or USB Fans | 20W | 30 hours |
| TV or Entertainment System | 60W | 9.5 hours |
| Laptop/Tablet Charging | 60W | 10.67 hours |
| Water Pump & Vent Fan | 30W | 19 hours |

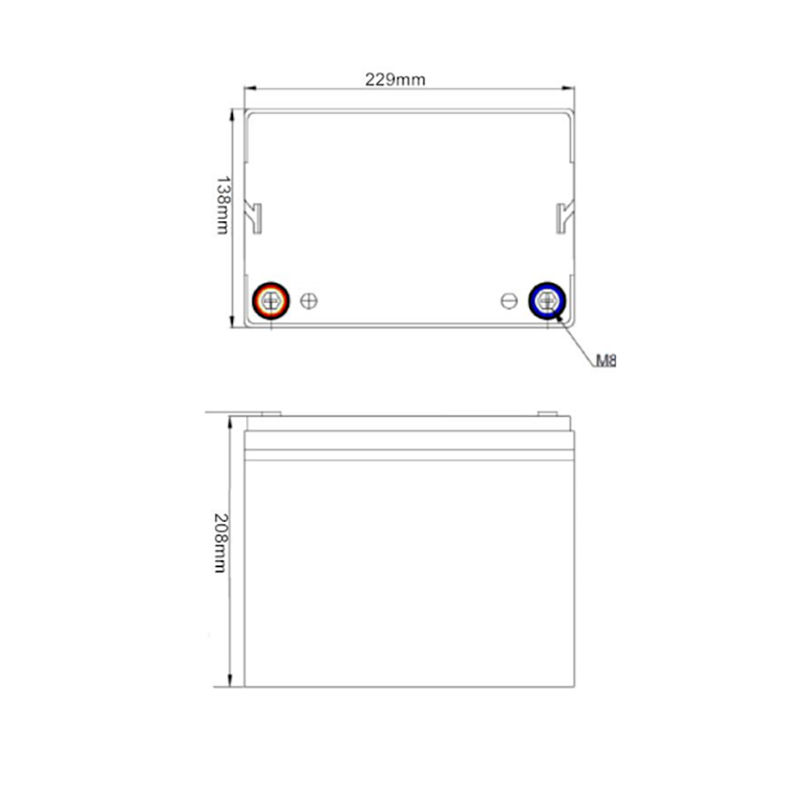

A:The dimensin of 12V 50Ah lifepo4 battery is 229mm(Length)X138mm(Width)X208mm(Height).
The weight of 12V 50Ah lifepo4 battery is 6.5KG.It’s very compact and 1/3 lightweight compared with the tradtional lead aicd battery.It can make the vehicle more powerful in the same size and make the vehicle lighter in movement.
A: Yes. You can connect the two 12V 50Ah batteries in parallel to make 100Ah. The maximum capacity you can make is 200Ah.
A:12V 50Ah means 12V nominal voltage and 50 ampere hours capacity.Actually, a 12V 50Ah lithium battery is 12.8V nominal voltage.
A:The charge time depends on the 12V 50Ah battery charger you use.Below table is the charge time based on different charge currents.
Charge Time for a 12V 50Ah Lithium Battery
| Charge Type | Charge Rate (C) | Charge Current (A) | Approx. Charge Time* | Notes |
| Slow Charge | 0.2C | 10 A | ~5–6 hours | Recommended for maximizing battery lifespan. Includes CC/CV stages. |
| Standard Charge | 0.5C | 25 A | ~2–2.5 hours | Balanced between speed and battery health. |
| Fast Charge | 1C | 50 A | ~1–1.5 hours | Faster charging, may reduce long-term battery life. |
A:For a 50-amp charge current,it takes 1-1.5 hours to fully charge the 12V 50Ah lithium battery. You just need to leave the battery on charge for a maximum of 1.5 hours. Don’t leave the battery unattended.
A: Compared with a lead acid battery, there are several main advantages of 12V 50Ah LiFePO4 batteries as below:
–Ultra-long Cycle life: Lifepo4 battery has 6000 times cycle life, while lead-acid battery only has 300-500 cycles.
–Fast Charge Capability: Lifepo4 battery can allow 1C fast charging, while a lead acid battery can only support maximum 0.2C charging.
–Lightweight: Lifepo4 battery is only ⅓ the weight of a lead acid battery.
– Deep of Discharge: Lifepo4 battery can allow 100% deep of discharge, while the lead acid battery can only allow max 50% discharge.
–Maintenance: Lifepo4 battery is zero maintenance and can be used for 10 years, while the lead acid battery needs regular maintenance of water filling and annual replacement.

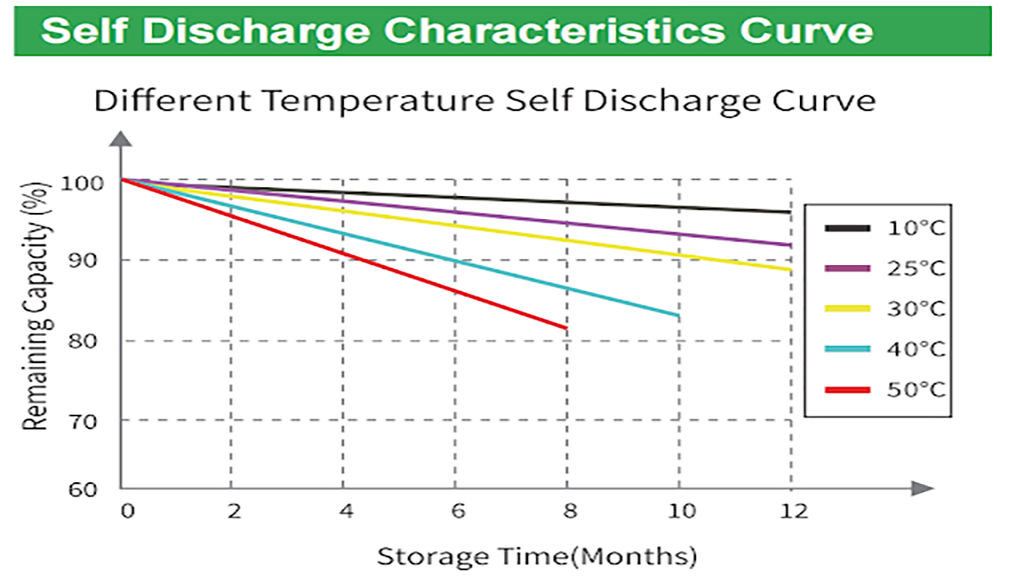

–Self discharge:Lifepo4 battery has low self-discharge 1%-3% per month,while lead acid battery has 3%-10% high self-discharge rate.
–Eco-friendly: Liffepo4 battery is environmentally friendly, while lead acid battery is hazardous.
–Voltage stability:Lifepo4 battery has stable 13V voltage output,while lead acid battery voltage drop and sag.
A: Featuring lightweight and long-cycle life, 12V 50Ah lifepo4 battery is suitable for RV,solar,marine application.Meanwhile,it can be used in UPS,but not so common.
A:12V 50Ah Lifepo4 battery can provide 600Wh of energy. It can power the most electric appliances in RV, such as refrigerator, fans, laptop, TV and light.

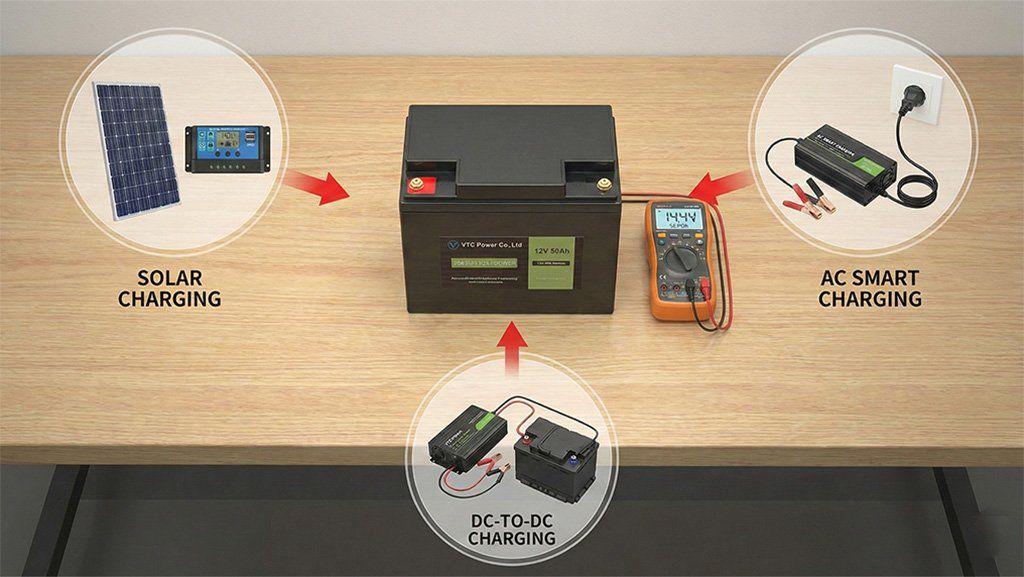

A: -Use a specified 12V 50Ah Lifepo4 battery charger as per the battery manufacturer.
-The charger should have max 14.6V charge voltage and adopt CC-CV charge methods.
-The charge current should be 0.2C(10A) slow charge current, 0.5C(25A) standard charge current, and 1C(50A) fast charge current. Never charge above 50A current.
-Use a smart lifepo4 battery charger, which will stop charging automatically, and the LED indicator turns from red to green.
– Use the charger with the zero charge function. Even when the battery is overdischarged, the charger can still charge the battery to normal voltage.
– Use the charger with a balance charging function, which can equally charge each cell and maximize the battery storage energy and performance.
A:Yes.12V 50Ah Lifepo4 battery is safe to use indoors.The BMS can provide protection against overcharge,overdischarge,overcurrent, overtemperature,shortcircuit.
A:Yes.12V 50Ah Lifepo4 battery can replace a 12V 50Ah AGM or GEL battery directly in discharging.But you need to use the specified lifepo4 battery charger to charge the 12V 50Ah lifepo4 battery.
A: For a high-quality 12V 50Ah battery, there are many factors you need to consider.
–Gade A and Brand New Cells: Multiple cell configurations require high consistency of the cells. To lower the 12V 50Ah lifepo4 battery price, some battery manufacturers use used cells with bad consistency, which will make the battery decay quickly without full charge and discharge.
–Smart BMS: Use the BMS with protections against overcharge,overdischarge, overcurrent,
overtemperature, and short-circuit. The mandatory function is cell balance and zero charge to enable the maximum performance of the battery.
–Bluetooth: The Bluetooth function enables users to check the battery status at any time.
-IP67 waterproof case: The IP67 waterproof case can prevent dust, rain, mud, and salt spray, bringing you a reliable power supply in a bad environment.
–Solid internal structure: The battery should be internally fixed in a modular holder with a solid structure to avoid internal movement.
–Ultrasonic welding case: The ABS case should be joined by an ultrasonic welding machine rather than glue, which will not only avoid residue and contamination but also ensure a cleaner, stronger, and more reliable seal.
